workflow钉钉审批流程设置-vue3版本

workflow钉钉审批流程设置，基于vue开发。QQ交流群①:639251756 QQ交流群②:790780565

• 开源地址vue3版本 https://github.com/StavinLi/Workflow-Vue3 github点个星吧！
• 开源地址vue2版本 https://github.com/StavinLi/Workflow github点个星吧！
• 开源地址react版本 https://github.com/StavinLi/Workflow-React github点个星吧！

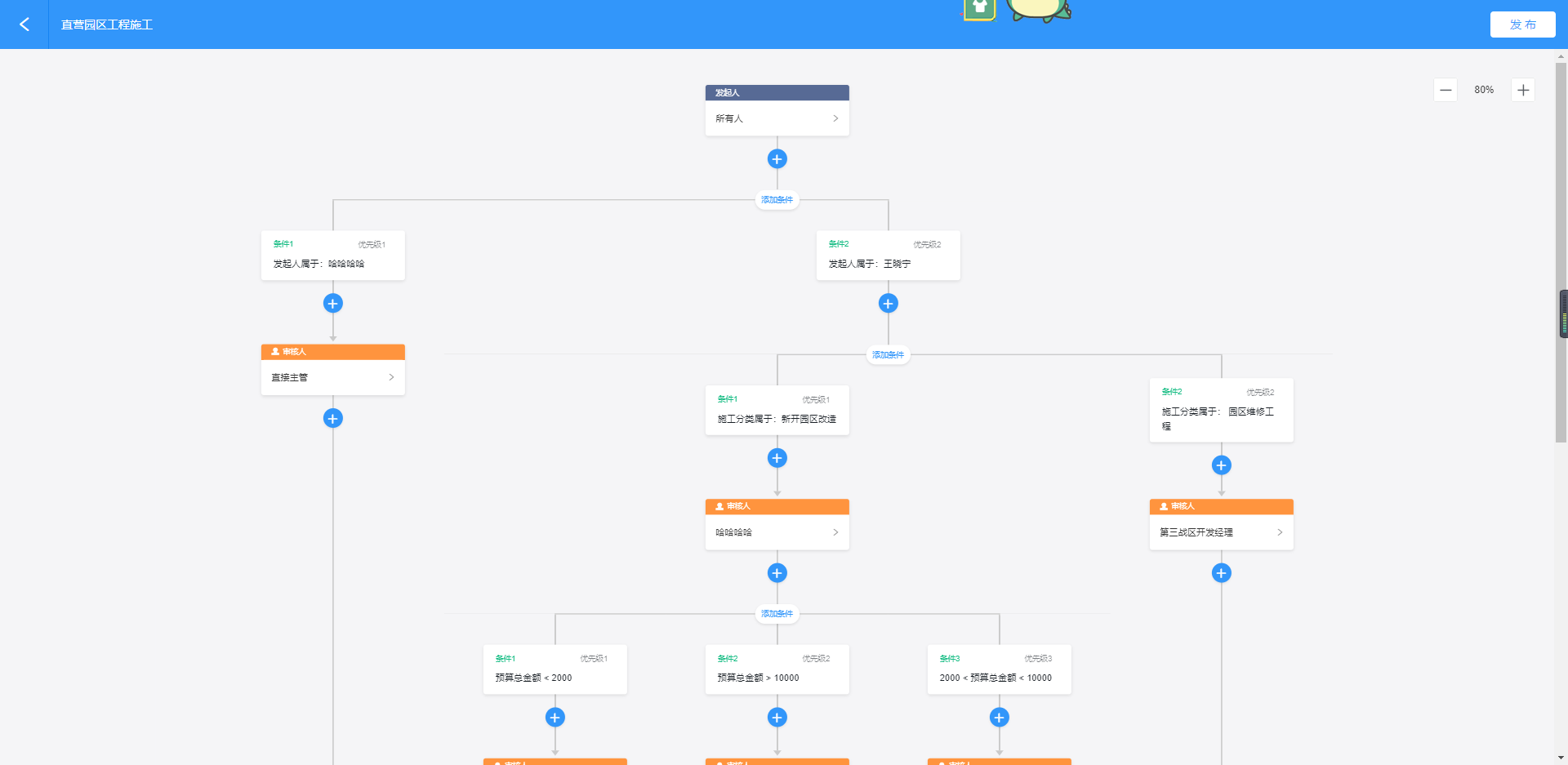

• 预览地址 https://stavinli.github.io/Workflow-Vue3/dist/index.html#/

项目介绍

• UI钉钉风格
• 技术点

1. 组件自调用+递归处理，按树状结局处理审批流程问题

• 主要功能点

2. 界面缩放

<div class="zoom">
	<div :class="'zoom-out'+ (nowVal === 50?' disabled':'')" @click="zoomSize(1)"></div>
    <span>{{nowVal}}%</span>
    <div :class="'zoom-in'+ (nowVal === 300?' disabled':'')" @click="zoomSize(2)"></div>
</div>

3. 节点设置（包括审批人、发起人、抄送人、条件设置）

<el-drawer title="审批人设置" :visible.sync="approverDrawer" class="set_promoter" :show-close="false" :size="550" :before-close="saveApprover">
    <div class="demo-drawer__content">
        <div class="drawer_content">
            <div class="approver_content">
                <el-radio-group v-model="approverConfig.approvalType" class="clear" @change="changeType">
                    <el-radio v-for="({value, label}) in approvalTypes" :key="value" :label="value">{{label}}</el-radio>
                </el-radio-group>
                ...

5. 节点新增

<div class="add-node-btn">
    <el-popover placement="right-start" v-model="visible">
          <div class="add-node-popover-body">
              <a class="add-node-popover-item approver" @click="addType(1)">
                  <div class="item-wrapper">
                      <span class="iconfont"></span>
                  </div>
                  <p>审批人</p>
              </a>
              <a class="add-node-popover-item notifier" @click="addType(2)">
                  <div class="item-wrapper">
                      <span class="iconfont"></span>
                  </div>
                  <p>抄送人</p>
              </a>
              <a class="add-node-popover-item condition" @click="addType(4)">
                  <div class="item-wrapper">
                      <span class="iconfont"></span>
                  </div>
                  <p>条件分支</p>
              </a>
          </div>
          ...

5.错误校验

let {type,error,nodeName,conditionNodes} = childNode
if (type  ===  1 || type  ===  2) {
    if (error) {
        this.tipList.push({ name: nodeName, type: ["","审核人","抄送人"][type] })
    }
    this.reErr(childNode)
} else if (type  ===  3) {
    this.reErr(childNode)
} else if (type  ===  4) {
    this.reErr(childNode)
    for (var i = 0; i < conditionNodes.length; i++) {
        if (conditionNodes[i].error) {
            this.tipList.push({ name: conditionNodes[i].nodeName, type: "条件" })
        }
        this.reErr(conditionNodes[i])
    }
}

6.模糊搜索匹配人员、职位、角色

<input type="text" placeholder="搜索成员" v-model="searchVal" @input="getDebounceData($event,activeName)">
<input type="text" placeholder="搜索角色" v-model="searchVal" @input="getDebounceData($event,2)">
<input type="text" placeholder="请选择具体人员/角色/部门" v-if="conditionConfig.nodeUserList.length  ===  0" @click="addConditionRole">

项目安装

git clone https://github.com/StavinLi/Workflow-Vue3.git 点个赞吧！

项目运行 node14.20.1

1.环境依赖 npm i

2.本地运行 npm run dev

3.打包运行 npm run build
